ZWO New EAF

Introducing 5V EAF, this electronic focuser, like its previous version, enables precise, dynamic focus control for planetary and deep-sky imaging, while only connected to a 5V USB-port.

Features:

1. Highly integrated design
2. Support ASCOM platform and various ASCOM-compatible third-party software
3. Support INDI
4. Support original software such as ASIAIR and ASIStudio
5. Support automatic focusing for DSO imaging
6. Support handle controller and manual focusing
7. Support temperature sensor
8. USB HID device and driver-free
9. Stable and durable

   Compared to the old version of the EAF focuser, the main change of the 5V EAF is to eliminate the need for a 12V power supply port. Now you can directly connect it to your camera, laptop or ASIAIR PRO via the USB 2.0 port and use a cable for both data transmission and power supply! This makes the cable management much easier, as well as reducing the need for additional power outlets.

   The innovative decorative pattern on the EAF is inspired by the changes of Airy disk during focusing showing how the focusing curve gives a local minimum at best focus – giving an easy explanation on how the EAF works just with a glance on the cover!

   There are two variants of the 5V EAF:

   Standard Version: EAF body, flexible coupling, motor bracket, USB2.0 cable.

   Advanced Version: EAF body, flexible coupling, motor bracket, USB2.0 cable, hand controller, temperature sensor.

   You could purchase the standard version first, and then buy other accessories to upgrade in the future.

   The casing of the hand controller uses environment-friendly ABS-material.  It has a 3.5mm female socket. The design aims at giving you the best ergonomic grip, so that you focus (pun intended J ) on capturing images!

   The hand controller provides an easy method of focusing the telescope, featuring IN- and OUT-buttons, a 2-gear display, slow and fast speed rate control.

   A “must-have” option for EAF users!

   Support list:

   SkyWatcher Astrophotography Reflectors, SkyWatcher Black Diamond, SkyWatcher Dobsonians, SkyWatcher Maksutov-Newtonians.

   SharpStar telescopes,

   SkyRover telescopes,

   TS Optics,

   Astro Tech,

   Feather Touch,

   Please be aware that not all models from the brands above are supported.  You can read the following instruction for the full supported list of telescopes and the different connection methods:

   ZWO EAF Compatible Focuser List & Connecting Methods

   More models will be supported in the future. Please stay tuned.

   Parameters:

   Size: 59mm x 52mm x 41mm

   Moter: Step moter, 35mm diameter, 7.5° step angle

   Reduction ratio: 120

   Power/Data port: USB2.0 port, Type-B

   Weight: 277g

   Capacity: 5kg

   Connecting diagram

   Mechanical diagram

   What’s in the box？

   ZWO EAF bracket for Takahashi Scope

   (this part is defined as optional accessories for ZWO EAF)

   Support List:

   Takahashi FSQ85

   Takahashi FSQ106 (except for the first generation)

   Takahashi TOA-130NFB

   Mechanical diagram：

   What’s in the box?

   ZWO EAF Bracket for Celestron C8/C9.25/C11/C14

   (this part is defined as optional accessories for ZWO EAF)

   This bracket is designed to work with C8, C9, C11 and C14 the Celestron SCT scopes. You can directly connect it to the scopes without using the feather touch focusers.

   It is CNC milled from an aircraft graded aluminum block. Quality reliable.

   The detailed supported list:

   Mechanical Diagram：

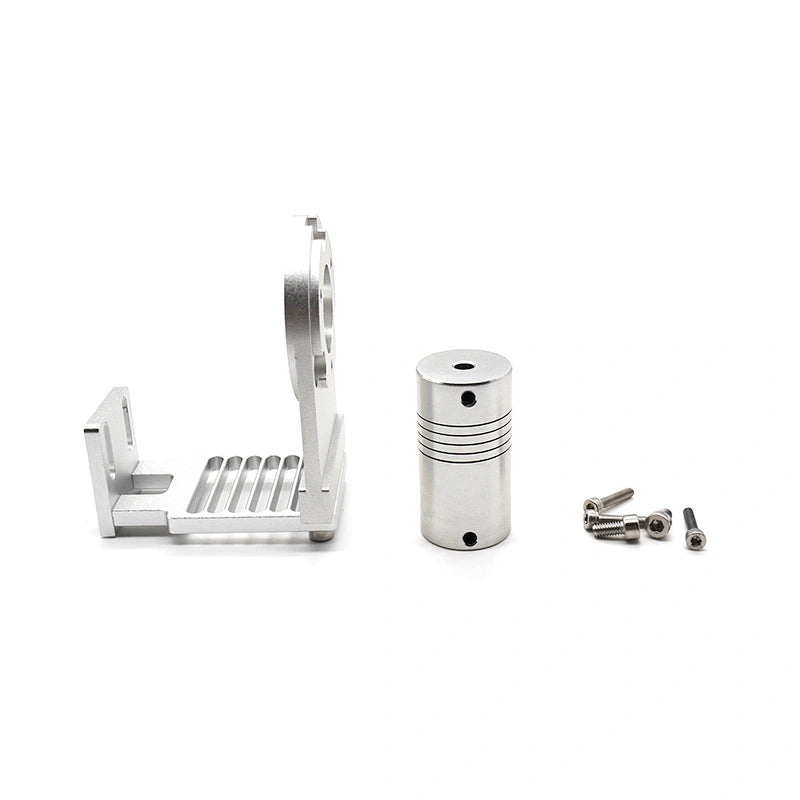

   What’s in the box?

   1. For Celestron C8 and C9.25

   Flexible coupling x1

   Motor bracket x1

   M4-8mm x2

   M3-14mm x3

   2. For Celestron C11 and C14

   Flexible coupling x1

   Motor bracket x1

   M4-8mm x2

   M3-35mm x3

   M4-35mm x3
