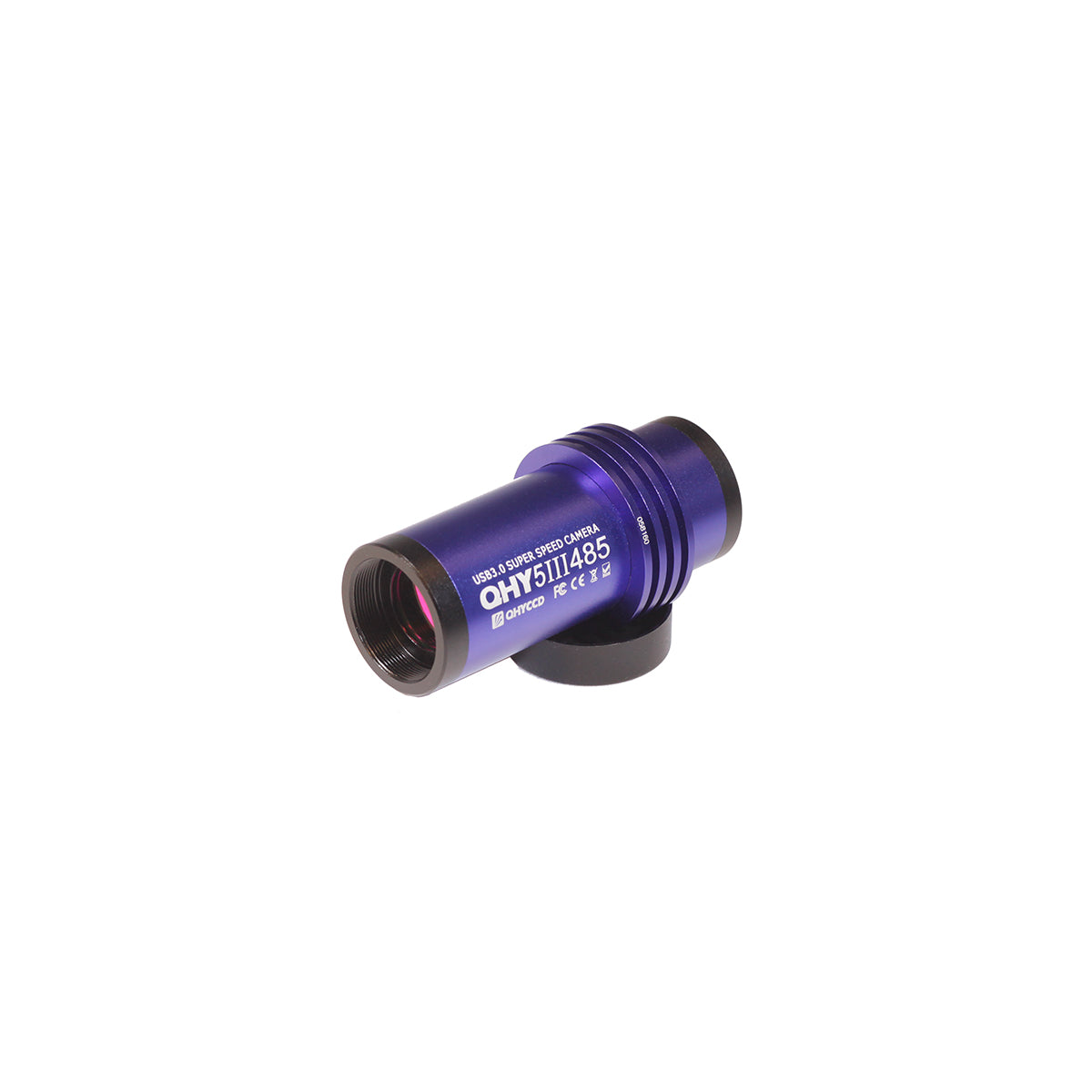

QHYCCD QHY5III485C Astronomy Cameras

QHYCCD QHY5III485C Astronomy Cameras

$299.00 USD
$299.00 USD
促销 售罄
结账时计算的运费。

QHY5III485C uses Sony’s new IMX485, back-illuminated, 8.4 megapixel color CMOS sensor with an array of 3864 x 2180 pixels at 2.9um. With USB 3.0 interface, the full frame rate of 44 FPS at 8-bits or 18.5 FPS at 16-bits. Smaller regions of interest will yield even faster frame rates.

The resolution of QHY5III485C is 16:9, which is equivalent to the mainstream video output ratio. With the native high resolution, 485C can play a special role in recording astronomical video and astronomical science live broadcast.

*Price shall be slightly different among countries and regions; Shipment expenses, customs or other taxes are not included.

Model QHY5III485C
Image Sensor Sony IMX485
Mono/Color Color Only
FSI/BSI BSI
Sensor Size 1/1.2inch
Pixel Size 2.9μm*2.9μm
Effective Pixel Area 3864*2180
Effective Pixels 8.4 Megapixels
Full Well Capacity 12ke-
Read Noise 0.77e- to 2.4e-
A/D 12bit (output as 16bit and 8bit)
Built-in Image Buffer 128MB DDR II Memory
Full Frame Rates 44FPS@8bit
ROI Frame Rates 78.5FPS@1200lines,
87FPS@1080lines,
91.5FPS@1024lines,
97.5FPS@960lines,
121FPS@768lines,
190FPS@480lines
Exposure Time Range 11μs-900sec
Shutter Type Electronic Rolling Shutter
Computer Interface USB3.0 Type-B
Guide Port Custom ST-4
Telescope Interface 1.25-inch, with CS and C-Mount
Optical Window IR-Cut Filter
Extra Filter –
Back Focal Length 12mm
Weight 90g



Curves

Mechanical Dimensions

Accessories
