S8177 astronomical telescope micro motion gimbal lock does not shake, supports 1/4 screw fixation, V-groove fixation

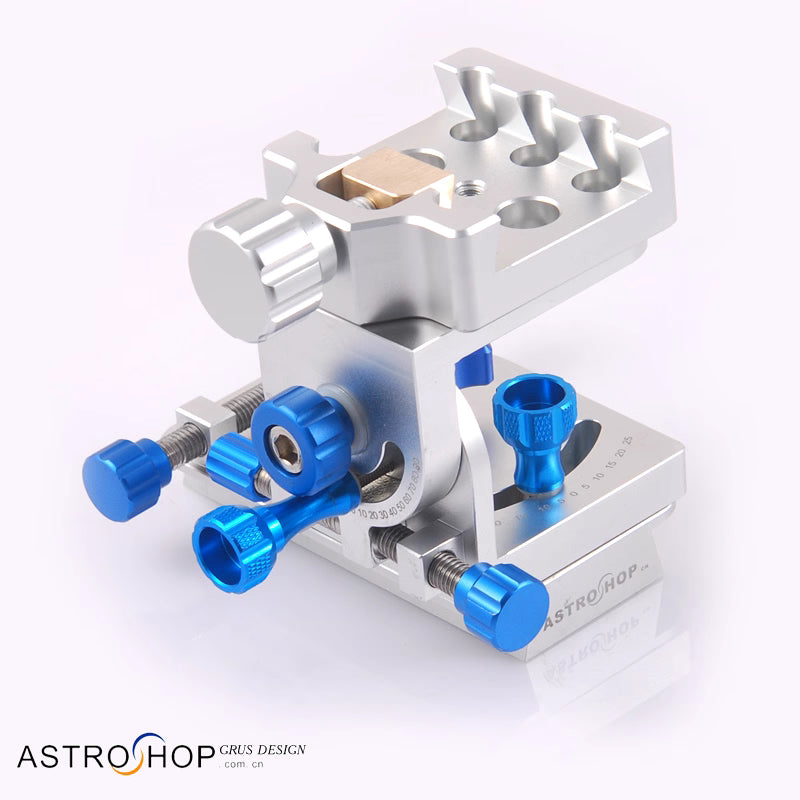

S8177 Micro gimbal

Features:

Improved the locking of the previous product, as well as the presence of screw space and clearance.

This product is locked with two fixed screws and a set of fine adjustment screws for both horizontal and vertical movements.

Fixed without micro motion gap.

parameter

Body length: 110mm

Body width: 77mm

Body height: 86MM (with V-shaped groove added: 24MM)

Horizontal adjustment: about 45 degrees

Pitch adjustment: about 40 degrees

Load capacity: 7.5KG

Body weight: about 700g, S7959 V-type fixing groove about 200g

Bottom chain interface: 3/8 inch, 1/4 inch screw hole, V-type main mirror dovetail size

Top chain interface: 1/4 inch screw hole, V-shaped dovetail groove
