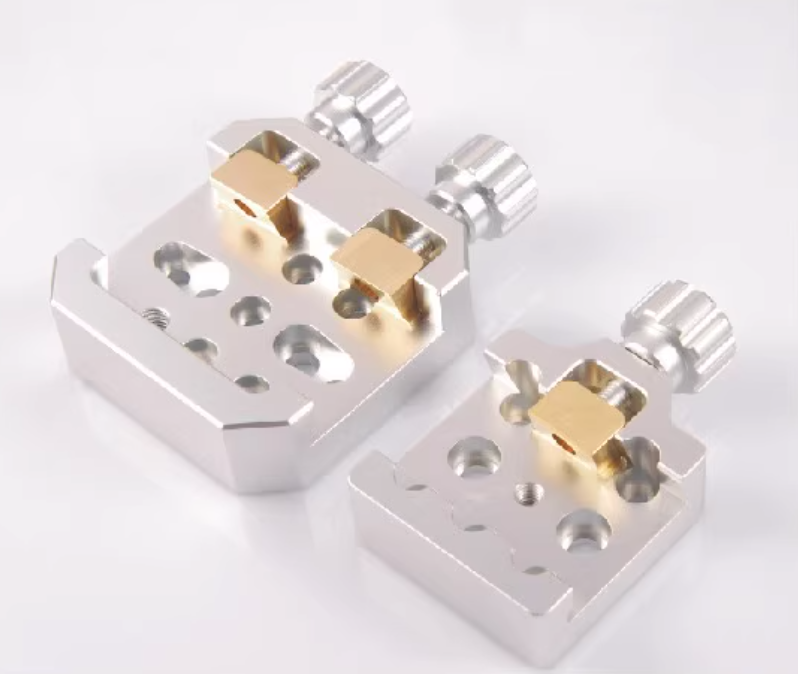

S7947 reinforced large dove tail groove large pan tilt plate fixed astronomical telescope equatorial instrument using V-shaped specification

2023 elongated T-shaped dovetail groove - rejects high imitation, supports original creation

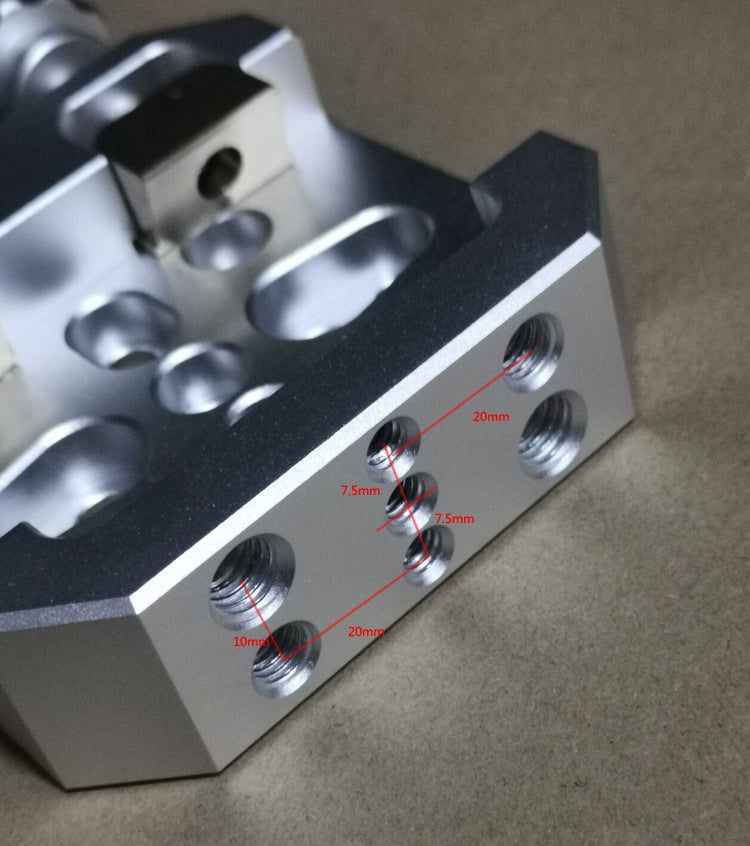

The 2023 model has added side multifunctional screw holes
3/8 two, M8 two, middle row: 1/4 threeS7947- New enhanced dovetail groove
Length: 88mm
Height: 28MM
Upper edge width of dovetail groove: 45mm
Bottom width of dovetail groove: 49mm
Depth of dovetail groove: 14mm
Material: Lightweight aviation aluminum alloy

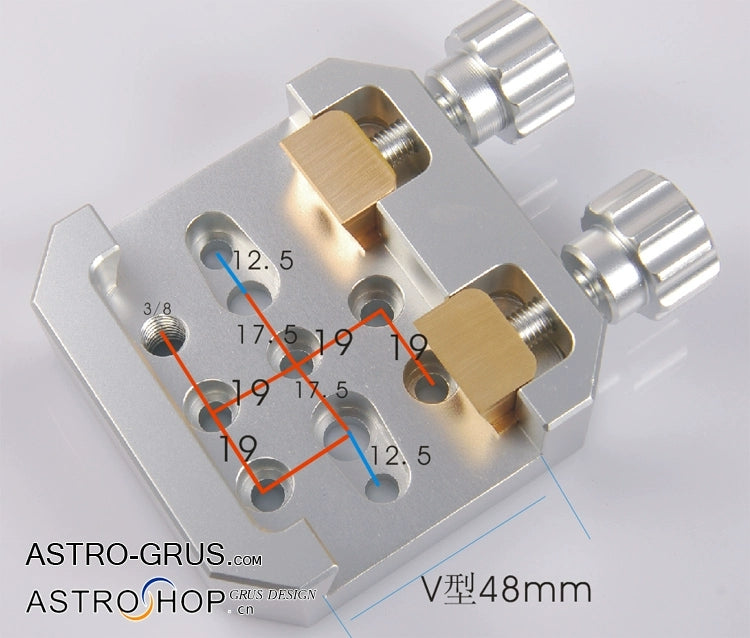

The main mirror interface includes 3/4 and 1/4 inch screws and universal screw holes M6, M7, M8 series are all available
The hole spacing of M8 is 35MM
M6， 1/4 of the hole spacing is: 38MM per group, 6OMM per group
