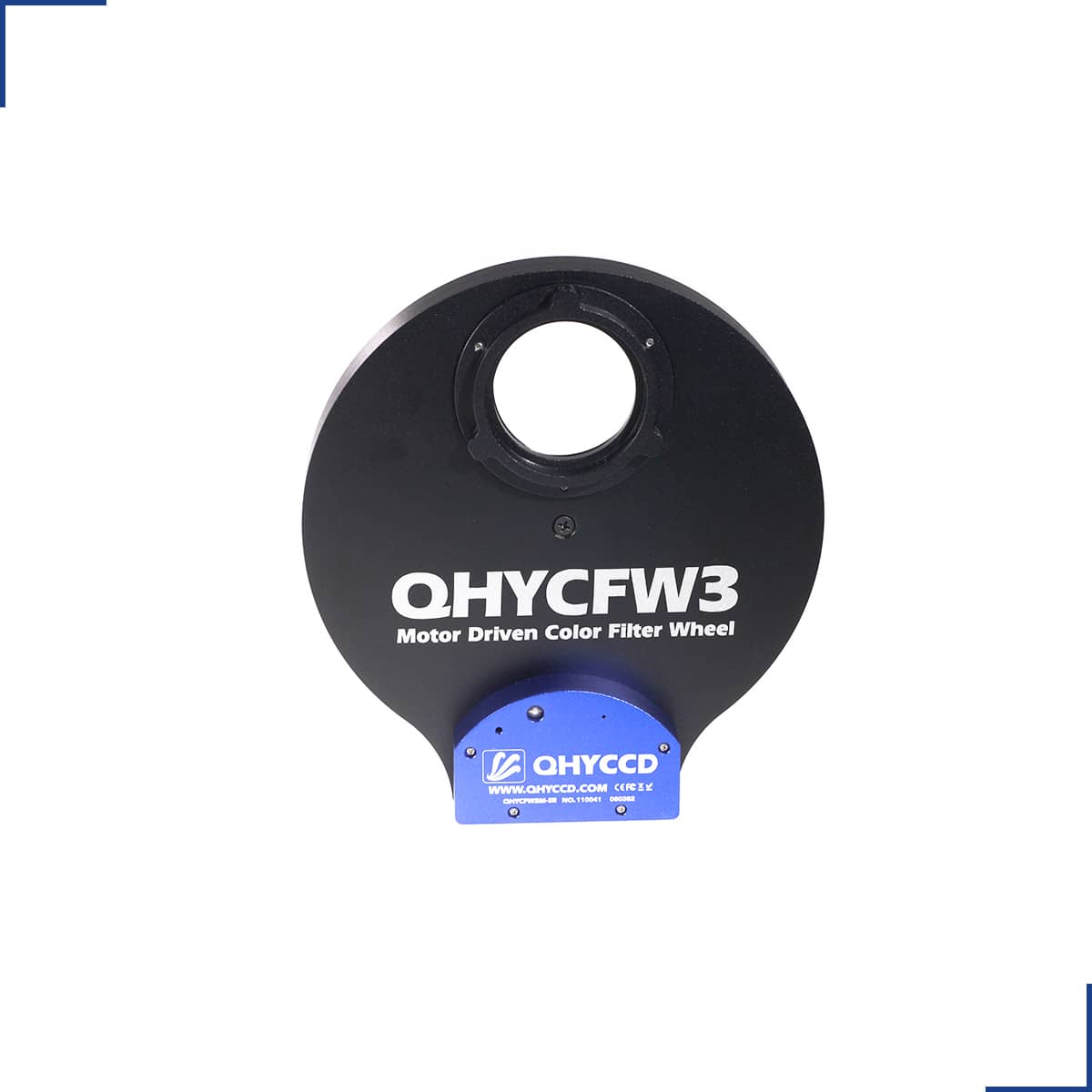

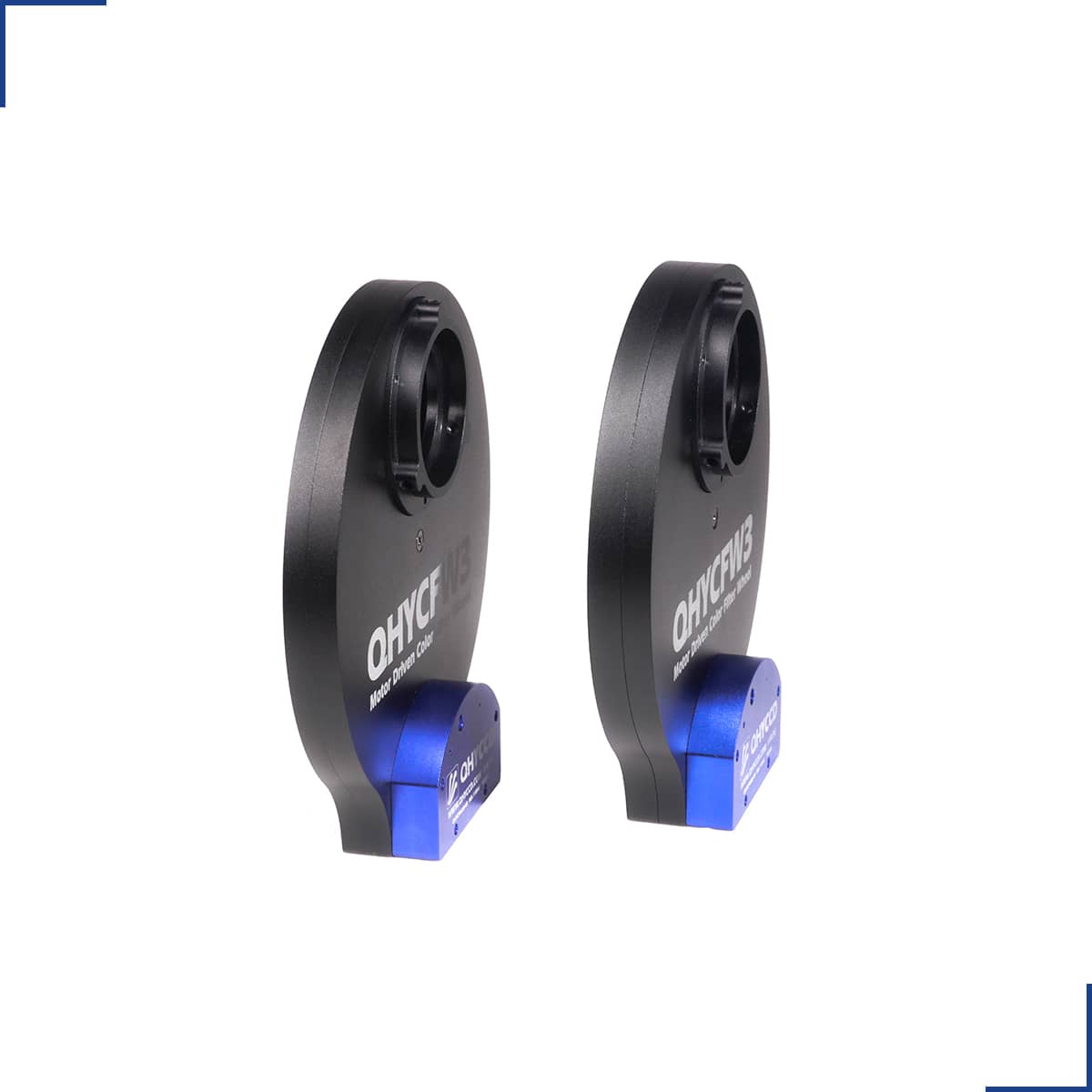

QHYCCD QHYCFW3 Filter Wheel QHYCFW3 QHYCCD Astronomical

QHYCCD QHYCFW3 Filter Wheel QHYCFW3 QHYCCD Astronomical

Regular price $259.00 USD
Regular price Sale price $259.00 USD
Sale Sold out
Shipping calculated at checkout.
Filter wheel

The QHYCFW3 series filter wheels are available in multiple sizes to accommodate filters from 1.25-inch to 50 millimeters square.

QHYCFW3 filter wheels can be controlled by either an independent external program using the filter wheel’s USB port or via a special 4-pin port. When connected to the QHY 4-pin port there is no need for an additional power cable or control program.  All of the filter wheel functions can be controlled through the QHY camera.

*Price shall be slightly different among countries and regions; Shipment expenses, customs or other taxes are not included.



QHYCFW3 filter wheels utilize a new motor with direct drive and will reverse direction to take the shortest path when moving from one filter to another. For Example, in this demonstration the wheel moves from filter position 1 to position 2 to position 3 and then back to 1 again, over to position 7 and back to position 1 without ever making a complete rotation of the carousel.  This saves time if you’re doing a lot of filter changes in one imaging session.

LED changes color for each filter position.  The tricolor LED assigns one unique color or combination of colors to each filter position so you can tell if it’s moved to the correct position without removing it from the Telescope.

The CFW3 is also thin.  This feature and the short back focus of the COLDMOS cameras means you can add one of several camera lens adapters for Canon and Nikon camera lenses for wide field imaging with the filter wheel.

In the center of the back plate is a 12-volt DC power port.  This port is threaded for a short extension cable that is supplied with the camera that securely attaches such that it will not accidentally disconnect while you are imaging.



Filter Wheel Filter Supported Recommended Gears Back Focus Consumed* Usable height limit



(need to consider leaving gap space)

Weight Note
CFW3S-SR
CFW3S-US
7*1.25-inch mounted/31mm unmounted QHY533M, QHY183M
QHY5III Mono Planetary Cams (CFW1.25”Adapter needed)
20mm (SR)+4mm (Adapter)
15.5mm (SR)+4mm (Adapter)
QHYCFW3S-US
5.5mm
QHYCFW3S-SR
10MM
About 430g There’s no difference between S-SR and S-US expect their depth, but S-SR can be compatible with thicker 1.25” mounted filters.
CFW3M-SR 5*2-inch mounted/50mm unmounted QHY268M, QHY600M 20.5mm+2mm (Adapter) 10mm About 720g
CFW3M-US 7*36mm unmounted QHY163M, QHY294M, QHY268M 17mm+2mm (Adapter) 5.5mm About 700g
CFW3L 7*2-inch mounted/50mm unmounted QHY600M (PH/Pro) 21.5mm 10mm About 900g
CFW3XL 9*2-inch mounted/50mm unmounted



or 7*50mm square unmounted

QHY461PH



QHY600M-PH SBFL

21.5mm 10mm About 1500g A special adapter needed when connecting QHY600 SBFL and CFW3XL, see https://www.qhyccd.com/qhy600sbfl-cfw3xl-adapter/





Back Focus Consumed

For the convenience of calculation, all the data displayed are the increase in the back focal length taken up by using the adapter, which is not necessarily equal to the thickness of the component itself.  All the adapter data provided by QHYCCD are based on the focal length increment. For More information please see: https://www.qhyccd.com/astronomical-camera-adapter-bfl-solution/

The Calculation of Filter Wheel’s back focus consumed includes two parts: The thickness of  the filter wheel body (like the 15.5mm of CFW3S-US),   and the back focus consumed (like 4mm of CFW3S-US). Now new cams don’t need this adapter anymore, like QHY533M, QHY268M, QHY600M-PH SBFL, etc.



QHYCFW3S:

QHYCFW3M:

QHYCFW3L:

QHYCFW3XL:

Mechanical Dimensions

QHYCFW3-S-SR

QHYCFW3-S-US

QHYCFW3-M-SR

QHYCFW3-M-US

QHYCFW3-L

QHYCFW3-XL

Fix filters and match the camera
