QHYCCD QHY90A - 4/3inch KAF8300 CCD Astronomy Cameras

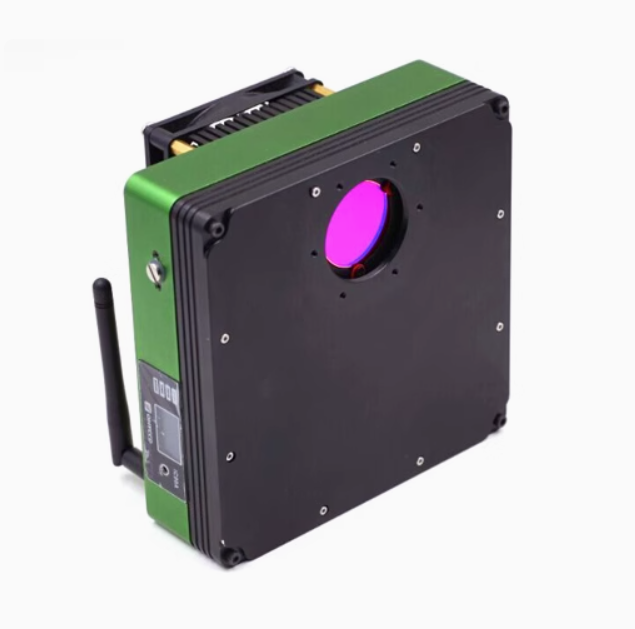

QHY90A is an 8.6 megapixel integrated cryogenic CCD camera launched by QHYCCD. Adopting the most advanced technology
KAF83004/3-inch CCD chip. It has 8.6 million pixels and a pixel size of 5.5 microns. Double-layer semiconductor system
The cooler can achieve a cooling temperature 45 degrees Celsius lower than the ambient temperature. Built in heating plate and external drying interface, with
Effectively avoiding the problem of CCD condensation at low temperatures. Equipped with strong cooling effect, low thermal noise and readout noise, etc
Basic and necessary indicators for cultural photography.
QHY90A has a built-in power supply and a 12V single wire input. Built in USB HUB, the camera also includes two serial ports, which can be accessed through an adapter
When the software supports it, it can be connected to equatorial instruments, electric focusing devices, and star guiding cameras. The above devices are connected to the camera for
Afterwards, it can be connected to the computer through the camera's USB cable without the need for additional connections. Equipped with a 12V power output, it can
Power supply for electric focusing. And it can seamlessly connect with QHYOAG.
Built in seven hole filter wheel, capable of installing up to 7 36mm filters at once (LRGBHaoISII) in one step
In place, avoiding the hassle of repeatedly disassembling and assembling filters, the integrated design makes the equipment installation process easier, and can make love easier
Experience smarter shooting methods for those who are good. Make shooting a relaxed and convenient enjoyment.

QHY90A/IC90A
CCD chip
KAF8300 Black and White
Effective pixels
3358 (H) * 2536 (V) 8.6 million pixels
pixel size
5.4um*5.4um
Chip Size
17.96mm (H) * 13.52mm (V). 4/3 inches
Read type
Layer by layer scanning
Full trap charge
>25.5ke
AD conversion
16bit
Speak out your voice
Typical 9 e-
System Gain
binning
1x1,2x2,4x4
time of exposure
1ms-10000sec
refrigerator
Double layer refrigeration
Refrigeration temperature
Below ambient temperature -45
shutter
Mechanical Shutter
Built in filter wheel
7-hole 36mm filter theory
OAG interface
6 M3 screw holes
