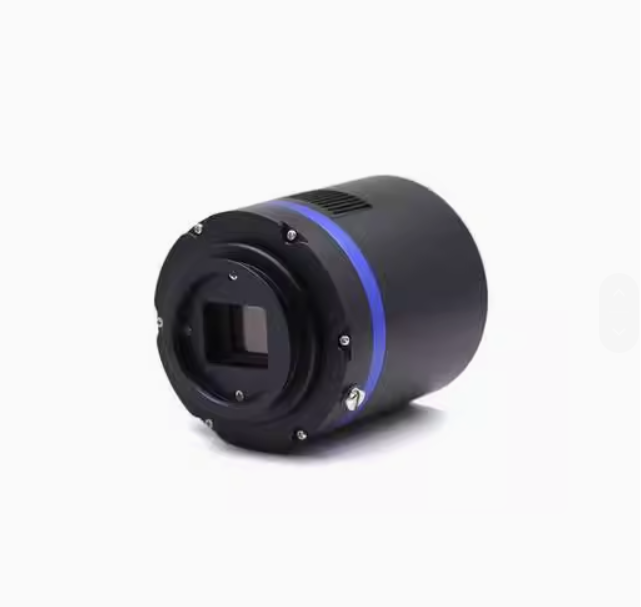

QHYCCD QHY163M Astronomy Cameras
QHYCCD QHY163M Astronomy Cameras
Regular price
$899.00 USD
Regular price
Sale price
$899.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
QHY163M/C Specifications
| Model | QHY163M |
| CMOS Sensor | Panasonic 16mega pixel 4/3inch sensor |
| FSI/BSI | FSI |
| Pixel Size | 3.8um*3.8um |
| Effective Area | 4656*3522 |
| Effective Pixels | 16 mega |
|
Sensor Size
|
Typical 4/3inch
17.7mm*13.4mm |
| Fullwell | 18ke- to 20ke- |
| AD Sample Depth | 12bit/10bit (output as 16bit and 8bit) |
| Max Full Frame Rate and ROI Frame Rate | 22.5FPS@16mega Full Resolution
30FPS@4K HD Video 57FPS@1920*1080 60FPS@1280*1024 80FPS@1024*768 100fps@800*600 |
| Readout Noise | 2.4e@low gain
1.0e@high gain |
| Dark Current | 0.006e/pixel/sec @ -20C |
| Exposure Time Range | 60us-1800sec |
| Unity Gain | 120 |
| Anti-Glow Control | Yes |
| Shutter Type | Electric Rolling Shutter |
| Computer Interface | USB3.0 |
| Built-in Image Buffer | 128MB DDR2 memory |
| Cooling System | Dual Stage TEC cooler (about -40C below ambient）（Test temperature +20°） |
| Optic Window Type | QHY163M: AR+AR High Quality Multi-Layer Anti-Reflection Coating |
| Anti-Dew Heater | Silicon gel tube socket |
| Telescope Interface | M42/0.75 |
| Back Focal Length | 17.5mm |
| Weigth | 442g |
