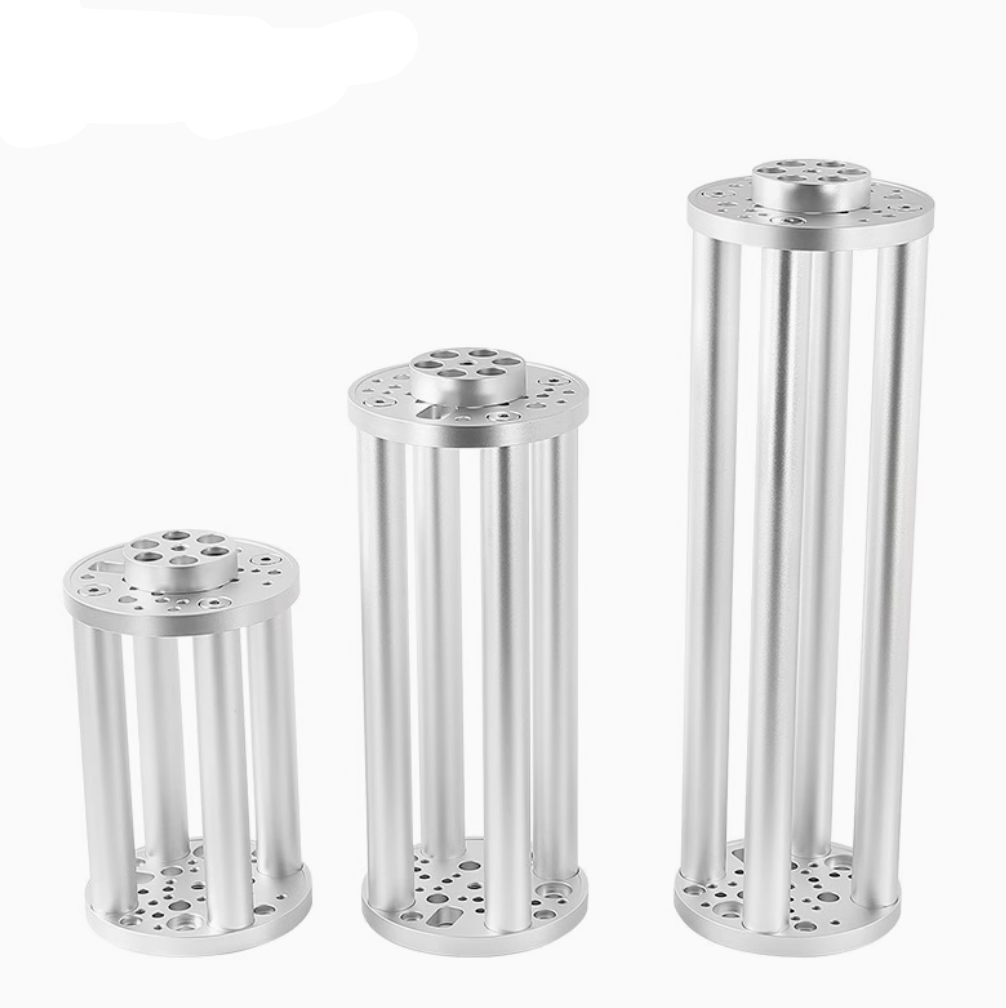

Harmonic Equator Height Increasing Node Vibration Boost For AM5 AM3 EQ3D HEQ5 EQ6 Ioptron

Upper plate can be connected
Zhenwang equatorial instrument (such as AM5, AM3 equatorial instrument), ioptron equatorial instrument (such as GEM45CEM40 equatorial instrument)
Instrument), 3/8-16 screw hole specification photography gimbal, latitude adjustment seat (such as Xinda, etc.), Xinda Daxingye
Equator, Xinda Xiaoxingye Equator, etc

The lower plate can be connected
Zhenwang TC40 carbon fiber tripod, ioptron gem45cem40 steel tripod,  iOptron carbon fiber tripod
Three legged tripod, ioptron CEM25 tripod, skywatcher EQ3, EQ5, EQ6 tripod, masvison EXOS2 tripod
Tripod, star edge carbon fiber tripod, other tripods with 3/8 mounting screws

BULE CIRCLE :Sinking through-hole (can be connected to tripod outer disks such as ZWOTC40)
GREEN CIRCLE :3/8 screw hole
YELLOW CIRCLE:Through holes, with a distance of 30mm from the center (compatible with ZWO
SKYWATCHER and other harmonics
Equator connected,
For example: AM5; W150i-B00, etc

Purple circle: M6 screw hole,
The distance from the center is 30mm (can be compared with ZWOTC40)
Silver middle plate connected)
Yellow circle: M6 screw hole (corresponding to Eaton ioptron tripod,
Can be connected to the Ayton Equator)
Blue circle: M6 screw hole (corresponding to the Eaton ioptron tripod,
Can be connected to the Ayton Equator)

M10 screw hole
All are through holes, and the distance from each through hole to the center hole is
20mm
